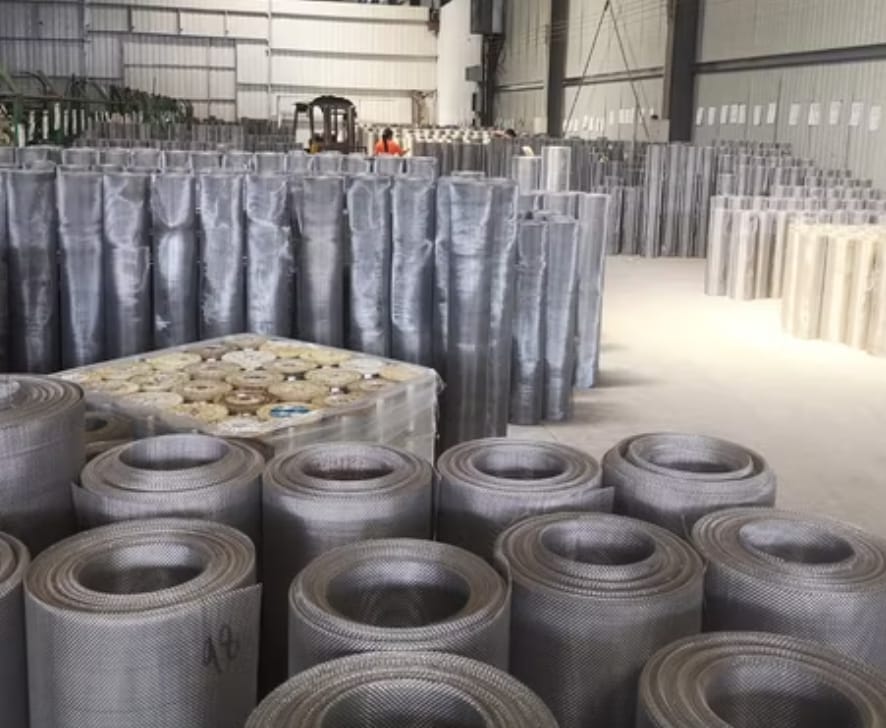

Stainless Steel Wire Mesh
Precision woven stainless steel mesh used for filtration, screening, separation and protection across chemical, pharmaceutical, food processing and mining industries.
Technical Specifications
| Material Grades | SS 304 / 316 / 316L / 310 |
| Mesh Range | 1 – 400 mesh / inch |
| Wire Diameter | 0.03 – 3.00 mm |
| Weave Types | Plain / Twill / Dutch |
| Roll Width | 1 – 1.5 meters (custom available) |
| Applications | Filtration, Sieving, EMI Shielding |

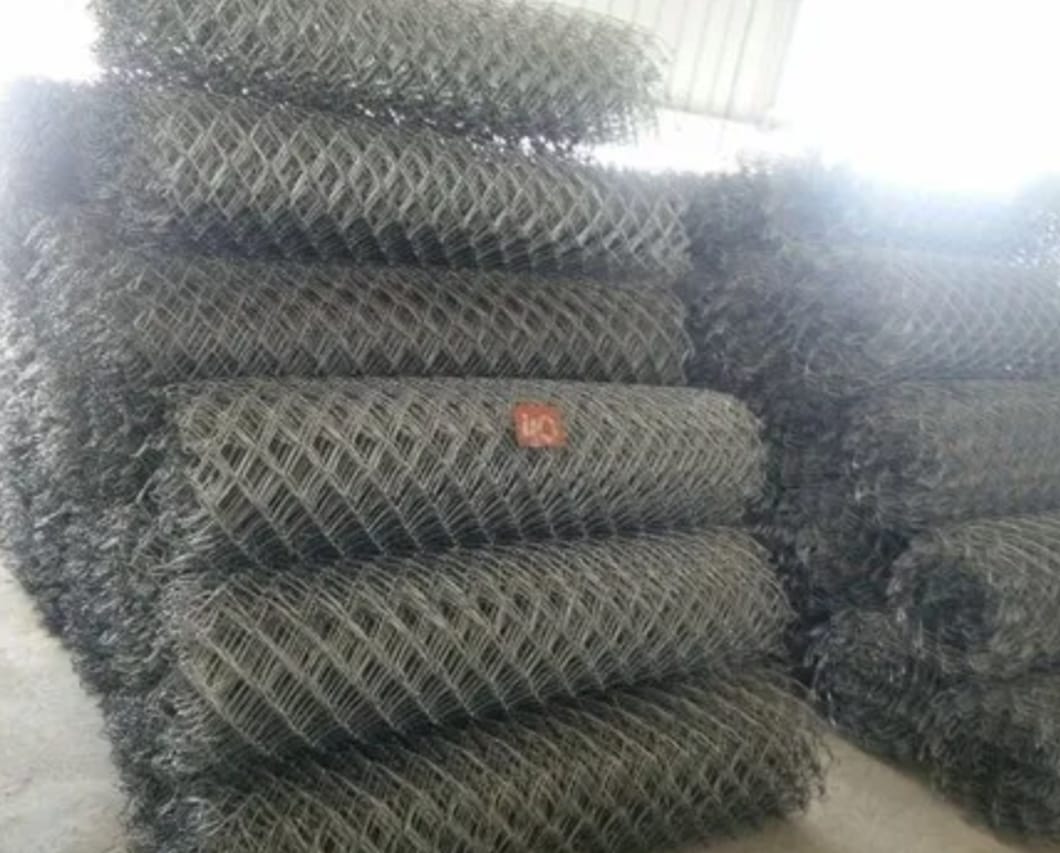

Chain Link Fencing
Industrial-grade chain link fencing manufactured for perimeter security, highways, industrial plants and infrastructure projects.
| Material | GI / PVC Coated / MS |
| Wire Diameter | 2.5 – 4.0 mm |
| Mesh Size | 40 – 75 mm |
| Roll Height | 1 – 4 meters |
| Coating Standard | IS 4826 |

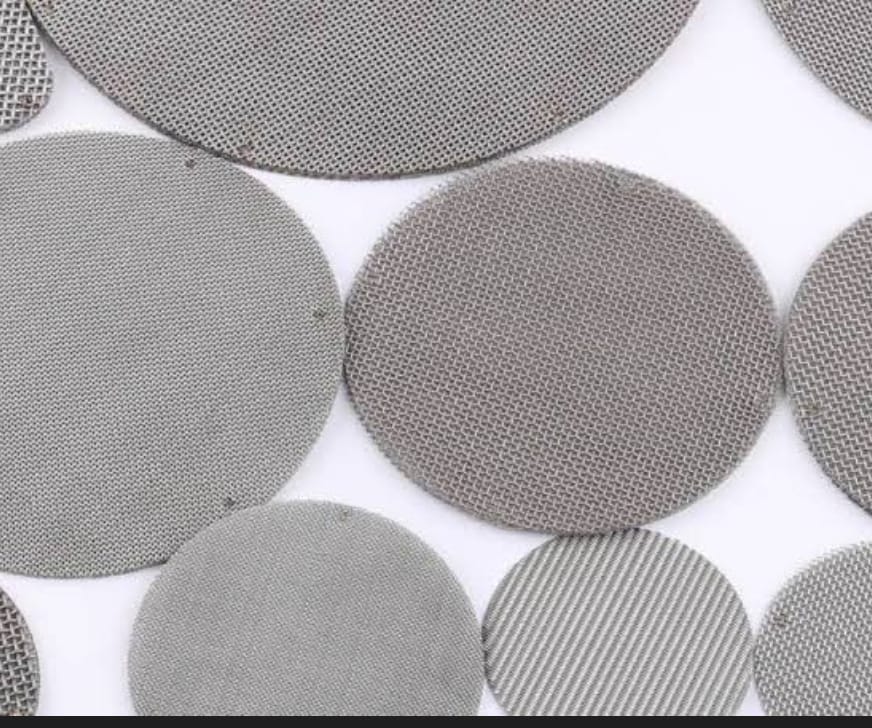

Extrusion Screen Packs
High-precision extrusion screens used in polymer, plastic and rubber extrusion lines for melt filtration.
| Mesh Range | 10 – 500 mesh |
| Wire Diameter | 0.025 – 0.50 mm |
| Diameter Range | 25 – 600 mm |
| Thickness | Single / Multi-layer packs |
| Industries | Plastic, Polymer, Rubber |

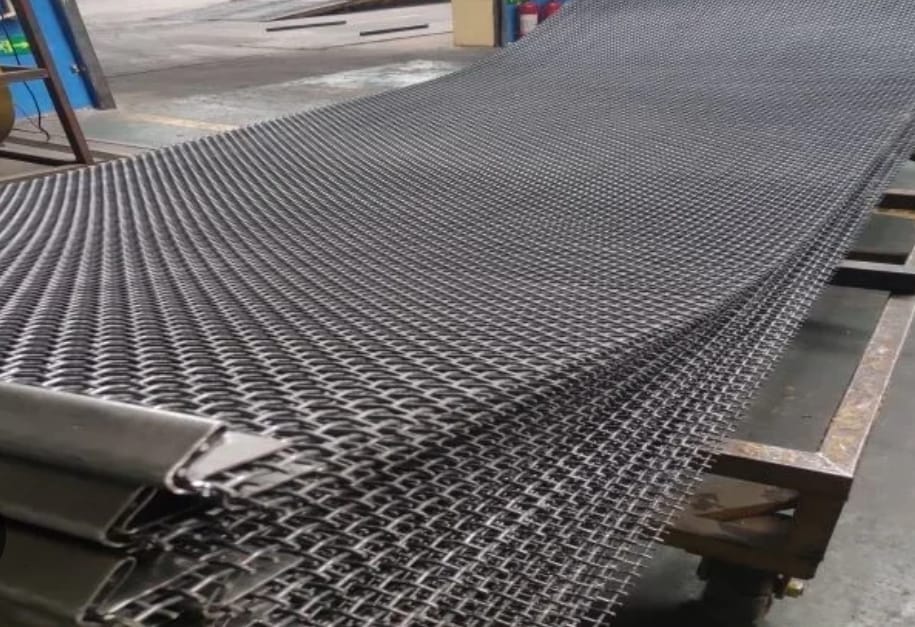

Spring Steel Sheets
High-carbon spring steel sheets used for crusher screens, vibrating screens and impact-resistant applications.
| Grade | EN42 / EN45 / C67 / C75 |
| Thickness | 1 – 10 mm |
| Hardness | 45 – 55 HRC |
| Finish | Polished / Heat Treated |
| Applications | Crusher & Vibrating Screens |
